Humminbird

HELIX 7 CHIRP GPS G4N

HELIX 7 CHIRP GPS G4N

SKU:411630-1

Regular price $699.99 USD
Regular price Sale price $699.99 USD
Sale Sold Out
Shipping calculated at checkout.

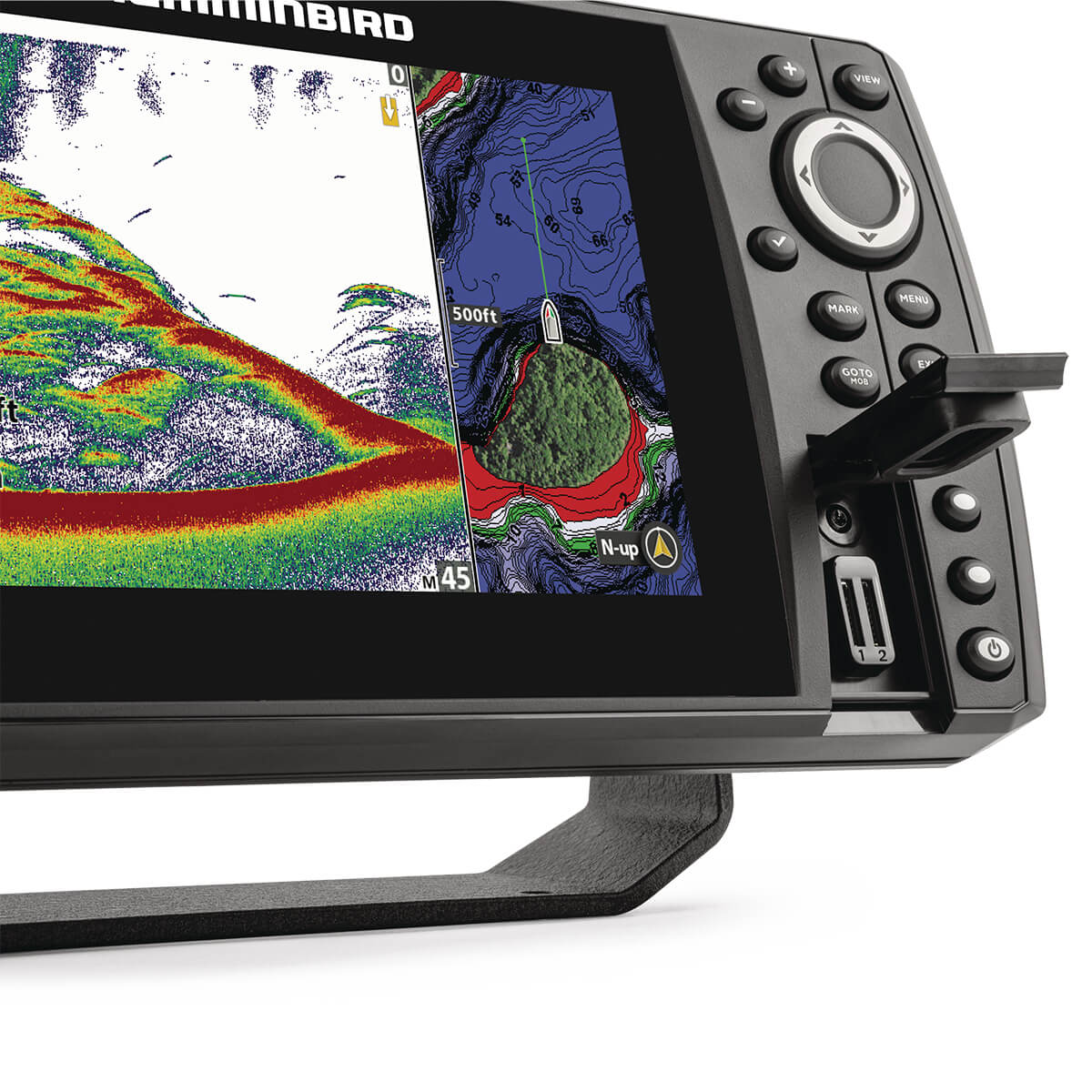

The HELIX 7 CHIRP GPS G4N fish finder features Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

  • Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity
  • One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
  • Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
  • NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
  • Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.
  • 1-Year Limited Warranty
Display Size - Diagonal 7"
Display Pixel Matrix 1024H x 600V
Transducer Included XNT 9 HW T
Compatible With Minn Kota US2 Sonar, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, AIS, NMEA 2000, Radar, AutoPilot, One-Boat Network
Features Networking, Built In GPS, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, Wi-Fi
Memory Card Slot Dual Micro SD
Sonar-Standard Dual Spectrum CHIRP
Sonar-Coverage 20°, 42° & 60° @ -10dB
Sonar-Optional 53 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200 kHz
Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
Interface Keypad Control
Power Draw 800 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 10.54" W x 5.8" H x 3.68" D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 10.54" W x 5.44" H x 1.13" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000
360 Imaging Compatibility No
MEGA Live Compatibility No
Humminbird Basemap Included
LakeMaster Compatibility Yes
CoastMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota i-Pilot Link Compatibility No
Minn Kota Talon Shallow Water Anchor Compatibility No
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Included
Target Separation 2.5"
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections No
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
HDMI Compatible No
Warranty One-Year Warranty
